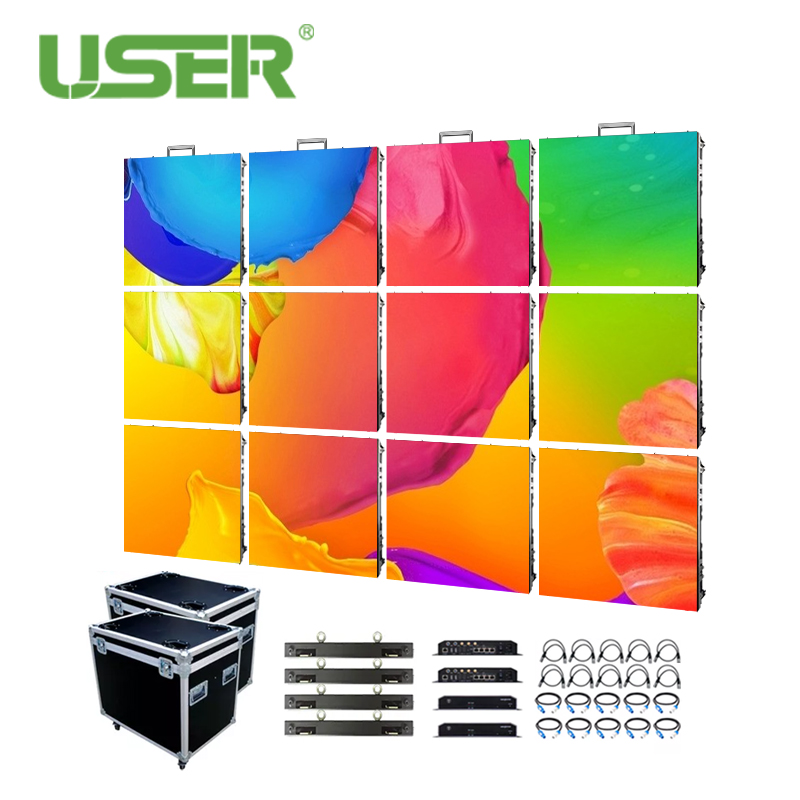

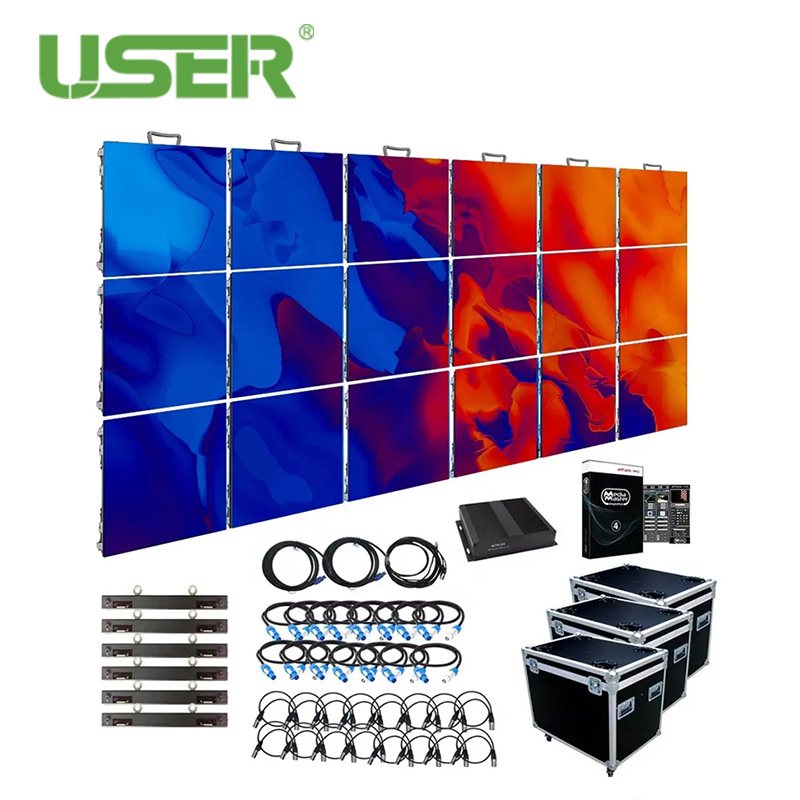

Brand: USER
Pixel Pitch(mm): 2.60mm/2.97mm/3.91mm
Module size: 250×250mm
Cabinet dimension: 500×500/500×1000mm
Viewing angle:H:140°;V:160°
Refresh rate: 3840/7680Hz
Application: Indoor
Function Features
250x250mm module, ZCI2.60, ZCI2.97 and ZCI3.91 models are optional.

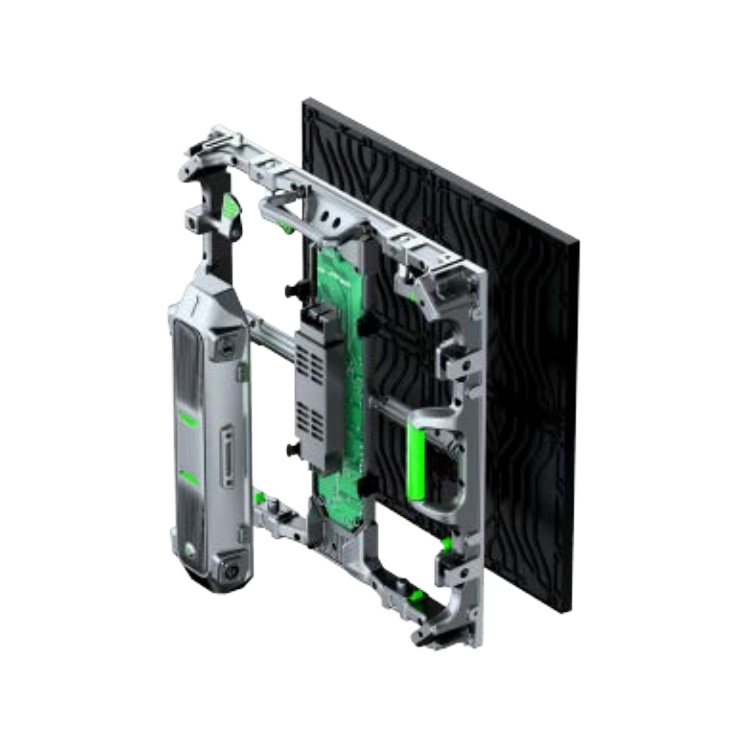

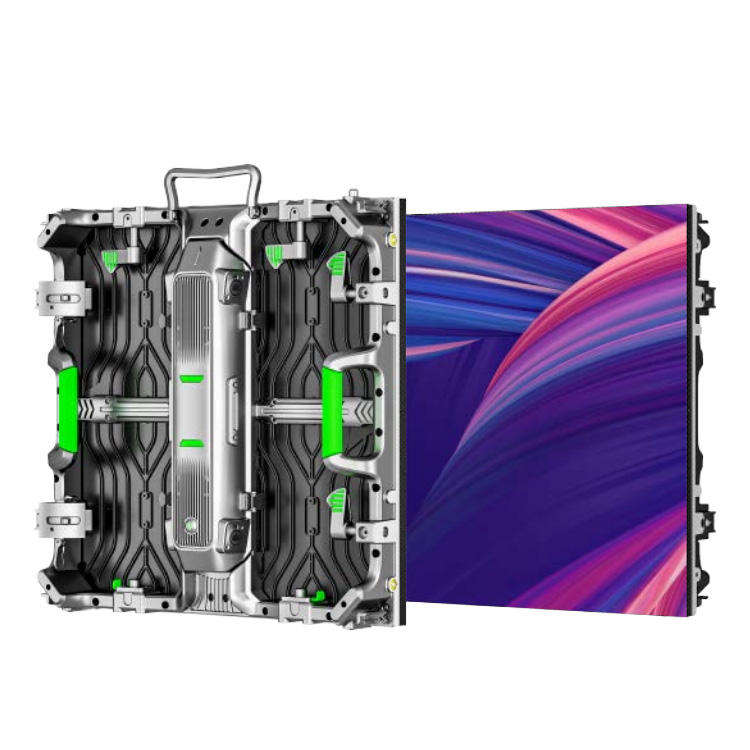

500x500mm, 500x1000mm size die-casting aluminum alloy material, stable structure, easy to dismantle; Easy to replace.
The box handle has a lock function, which has a high safety factor and meets the needs of one-person and one-hand installation, saving time and effort.
Foldable anti-collision corners are added to the four corners of the box to effectively protect the edge lamp beads and modules.
High-end large-chip pure black lamp beads are used to achieve ultra-high contrast, high grayscale, non-destructive refresh, and grayscale; optional arc shaped cabinets can truly achieve seamless arc-shaped splicing. Special shaped installation, suitable for different rental occasions.
Excellent sharp colors rendering series, cabinet sizes: 500x500mm, 500x1000mm, using pure black SMD, famous brand driving IC, 3840Hz refresh rate, splicing inner and outer arch is adjustable, compact & humanized design ensure easy assembly and dismantle, cabinet surface using anodized coating technology & anti-oxidation treatment, which is resistant to collision and friction and is suitable for multiple installations and removals during the rental process.





| Item | P2.604 | P2.976 | P3.91 |
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm |
| Module size | 250×250mm | ||
| Module resolution | 96×96 | 84×84 | 64×64 |
| Physical density | 147456 dots/㎡ | 112896 dots/㎡ | 65536 dots/㎡ |
| Cabinet resolution pixel | 192×192/384 | 168×168/336 | 128×128/256 |
| Cabinet dimension | 500×500/500×1000mm | ||
| LED type | SMD1515 | SMD1515/2121 | SMD2121 |
| Viewing angle | H:140°;V:160° | ||
| Refresh rate | 3840/7680Hz | ||
| Brightness | ≥800cd/㎡ | ||
| Gray Scale | ≥12~16bit | ||
| Input voltage | AC:110V-240V、50-60Hz | ||
| Average power consumption | 200-600w/㎡ | ||
| IP rating | IP43/45 | ||
| Cabinet Material | Die-casting aluminum Cabinet | ||


Brand: USER
Name: Arc-shaped rental screen LED
Adjustment: Curvature
Rated: IP65
Viewing Angle: Wide
Gray Scale: 16-bit
Waterproof series:IP65

Brand: USER
Name: Soft connection type Rental LED Display
Structure Solution:Hanging Truss Standing Structure
Power Solution:Mobile PowerDistribution Box.
Waterproof series:IP65 waterproof and dust proof,suitable for both indoor and outdoor use

Brand: USER
Pixel Pitch(mm): 2.604/2.97/3.91/4.81
Pixel structure:1R1G1B
LED:SMD1415/SMD1921
Module Size(W×H×D)(mm):250×250
Cabinet material:Die-cast aluminum cabinet

Brand: USER
Pixel Pitch(mm): 2.60mm/2.97mm/3.91mm
Model: ZCO2.60/ZCO2.97/ZCO3.91
Brightness: 4000-4500nits
Lamp face protection level:IP65
Packaging method: 60000 hours
Application: Outdoor
Use: advertising publish, retail store, shopping mall
